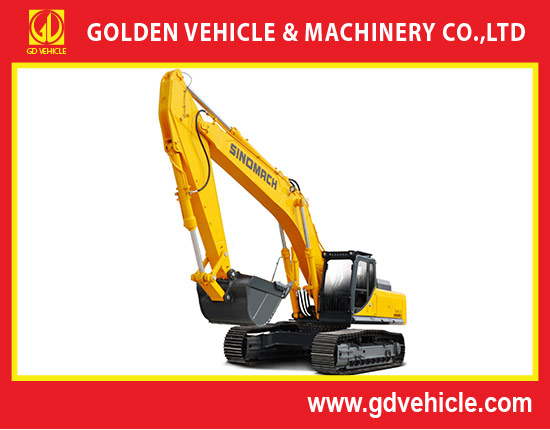

Hydraulic Excavators ZG3465LC-9C

>>Model: GD-MAC-EMM01
>>Hydraulic Excavatorsr
>>Standard Bucket : 2.25m³
>>Hot line: +86 18665921217

model ZG3465LC-9C
Specifications
Operating weight 47300kg
Standard bucket capacity  2.25m³
Arm length 3050mm
Boom length 5850mm
Engine
Model CUMMINS QSM11-C375
Type Turbo-charged with inter-cooled
Power 375280kW/2000rpm
Max.torque 1898N.m at 1400rpm
No.of cylinders 6
Displacement 10800cc
Hydraulic system
Main pump
Type Variable displacement axial piston pumps
Max.displacement 200cc/rev×2
Working pressure 32.3/34.3Mpa
Hydraulic motor
Swing Fixed displacement axial piston motor
Trave Variable displacement axial piton motors
 Performance
Swing speed 8.6rpm
Max. travel speed H/L 5.4/3.2km/h
Gradeability 35°
Max. digging force of bucket 290kN
Max.digging force of arm 228kN
Ground pressure 0.8kgf/cm²
Tank capacity
Fuel tank capcity 680L
Hydraulic tank capacity 380L

China SINOMACH Heavy Industry Corporation researches and develops standardized, modular and serialized SINOMACH crawler hydraulic excavator by pooling superior resourcesand innovating independently. This product has become the new favorite of the market by its four performance characteristics of “high-level configuration, energy conservation, reliability, and comfort”.
